VIZI CMY300

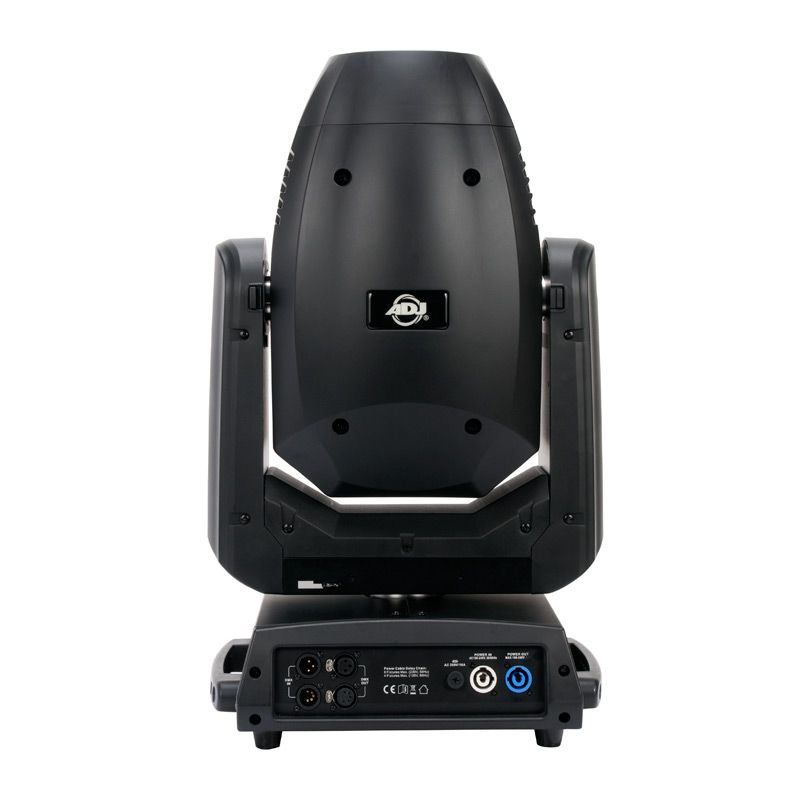

Pioneering Lighting Evolution: ADJ Vizi CMY300 LED CMY Hybrid Moving Head

Step into a realm of cutting-edge lighting innovation with the ADJ Vizi CMY300 LED CMY Hybrid Moving Head. This luminaire represents a groundbreaking convergence of technology, offering a blend of features that redefine possibilities in expansive venues and event productions.

Unveiling Technological Marvels:

Introducing the ADJ Vizi CMY300, powered by a specially designed 300W LED engine that commands attention in even the most expansive spaces. With advanced CMY color mixing and onboard WiFLY EXR wireless DMX, this moving head sets a new benchmark for lighting excellence.

A Triad of Functions in One:

From beam to spot to wash, the Vizi CMY300 is a versatile all-in-one solution. Its remarkable zoom range from 8 to 46-degrees empowers designers to extract maximum effects from a single fixture. This intelligent design streamlines installations and transportation with its compact footprint, outperforming most movers in its class.

Unleash Customized Brilliance:

Elevate your creative potential with CMY color mixing, allowing you to craft custom colors for a truly unique lightshow. The Vizi CMY300 empowers you to shape your vision with a palette of colors that resonates with your audience.

Seamless Precision and Advanced Features:

Experience precision with motorized focus and zoom, while exploring the dynamic possibilities of two rotating prisms – a 6-facet linear and a 3-facet circular prism. Dual GOBO wheels offer fixed metal patterns and replaceable rotating GOBOs, expanding your design horizons. Navigate with ease using the full-color function display, complementing locking power In/Out connections and 3-pin & 5-pin DMX connections on the rear panel.

Engineering Excellence:

Under the hood, the Vizi CMY300 unveils a modular design that redefines servicing and GOBO replacement. This feature streamlines maintenance, allowing you to focus on your creative endeavors without interruptions.

A Legacy of Recognition:

Distinguishing itself further, the Vizi CMY300 earned the prestigious PLSN Magazine Gold Star Product Award for "Best New Club Light" at LDI 2017, a testament to its exceptional capabilities.

In Conclusion: Igniting Creativity with Unparalleled Innovation

Prepare to be awestruck by the ADJ Vizi CMY300 LED CMY Hybrid Moving Head, a luminaire that redefines the boundaries of lighting excellence. Its powerful LED engine, limitless versatility, and a suite of advanced features transform events into visual masterpieces. Elevate your lighting endeavors and embrace a new era of creative brilliance with the Vizi CMY300 – where innovation ignites imagination.

Specifications

Light Source:

• 300W Cool White LED Engine

• 50,000 Hour Average LED Life

Color:

• Color Wheel: 9 + Open (Including: CTO 3200K & UV)

• Full CMY Color Mixing

GOBOs:

• GOBO Wheel 1:  8 Fixed + Open (1 Beam Reducers Beam Mode)

• GOBO Wheel 2:  6 Rotating/Replaceable + Open (Size: 26.8mm; Viewable: 20mm)

• Modular design for easy servicing and GOBO replacement

Effects:

• Zoom Range: 8 ~ 46-degrees

• Iris: Motorized 5-100%

• Focus: Motorized

• Frost effect

• Prism 1: Rotating 3-facet Circular

• Prism 2: Rotating 6-facet Linear Rotating

• Prism Layering

Connections:

• Power Input: Locking Power IN connection

• Power Pass through: Locking Power IN connection @120V or 220V

• USB firmware update port
• With Wired Digital Communication Network

Control:

• Built-in WiFLY EXR wireless DMX (up to 2500 ft. / 700M line of sight)
• Control Channels: 21, 24 or 26

• DMX Modes: 3, RDM (Remote Device Management)

• Control: 3-pin and 5-pin DMX

• Full color display menu

• Pan / Tilt Correction: Automatic

• Pan / Tilt Lock

• Pan / Tilt Range: 540˚ / 270˚

• Fine Tilt

• Pan/Tilt Speed: Fast to Slow

• Dimming & Fine Dimming: Electronic

Electrical:

• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)

• Daisy chain max: 3 fixtures (@120V); 7 fixtures (@230V)

• Power Draw: 398W (3.31A @ 120V; 1.8A @ 220V)

Dimensions/Weight:

• Dimensions (LxWxH): 12.8” x 14.9” x 24.3” / 325 x 378 x 618mm

• Weight:  51 lbs. / 23 kg.
