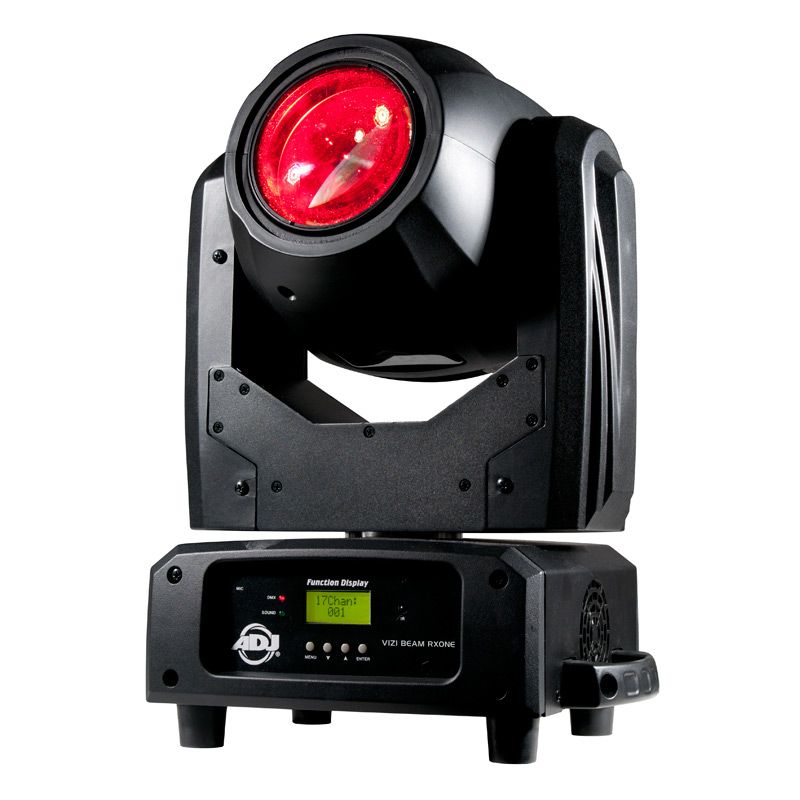

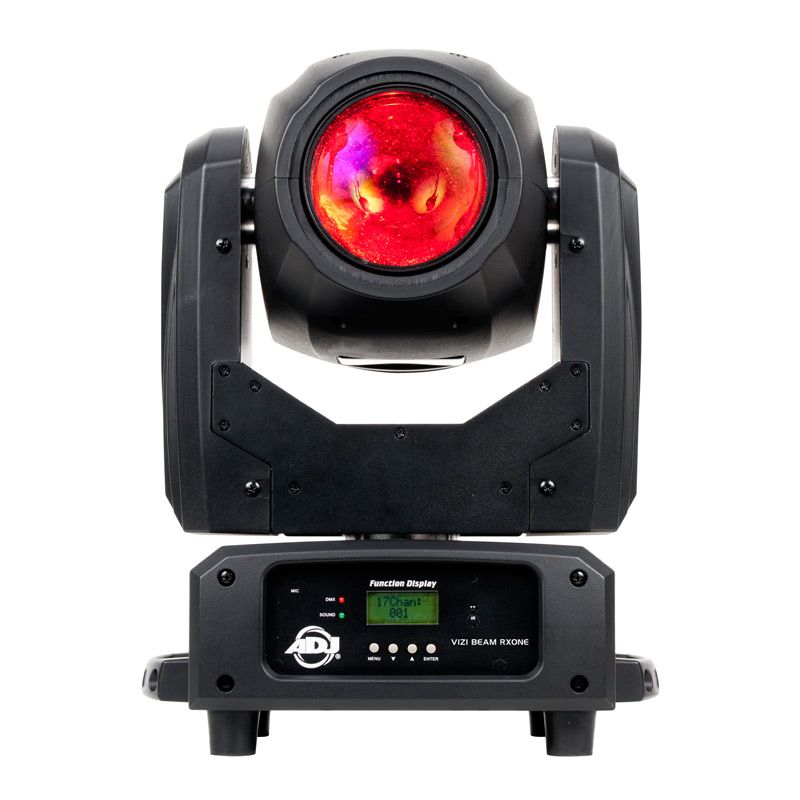

Vizi Beam RXONE

Experience Brilliance with the ADJ Vizi Beam RXONE Moving Head

Unleash unparalleled radiance with the ADJ Vizi Beam RXONE Moving Head, a compact and high-speed fixture designed to captivate. Engineered as part of ADJ’s sought-after Vizi Series, the Vizi Beam RXONE is a compact powerhouse, featuring an impressive Osram® Sirius HRI 1R discharge long-life lamp (6,000 hrs.). This luminary creates an astonishingly sharp 3-degree beam of light that travels up to an impressive 100 meters.

Precision and Versatility Combined:

A true marvel, the Vizi Beam RXONE blends precision and versatility in a single package. With its 16-bit movement capability, this nimble fixture transforms spaces with its sharp beam, while an included frost filter seamlessly expands its capabilities into a 21-degree wash effect. The result is a fixture that excels in both portable and permanent setups.

Dazzling Features for Dynamic Effects:

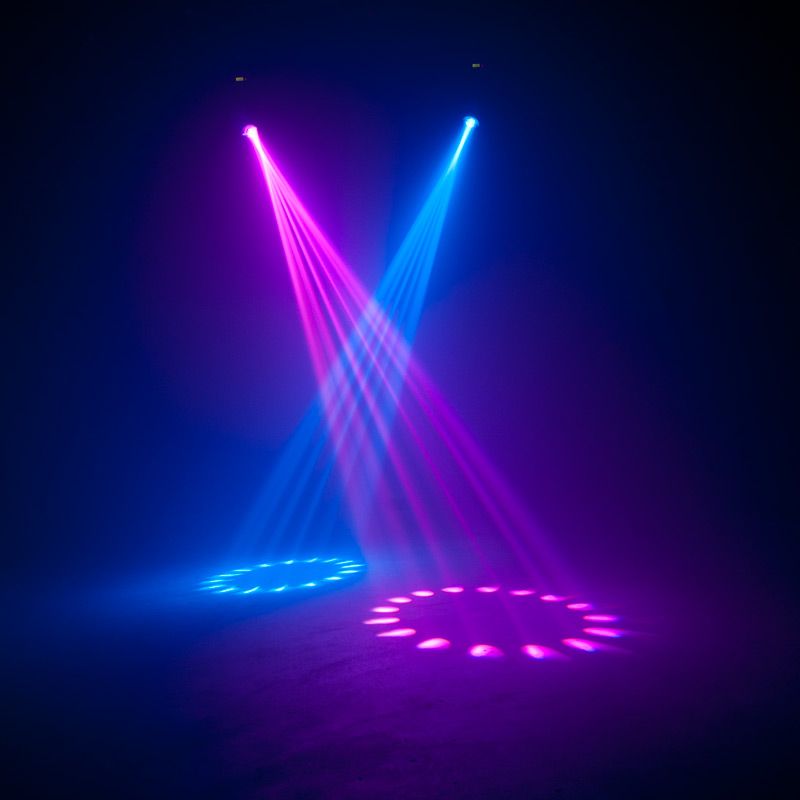

Beneath its sleek exterior, the Vizi Beam RXONE packs a multitude of features to enhance your lightshows. The fixture boasts a 16-facet prism that effortlessly splits the solid beam into 16 captivating mini beams. Further enrich your displays with a palette of 14 vibrant colors plus white, along with 15 static and fixed GOBOs.

Uncompromising Performance, Easy Control:

The Vizi Beam RXONE is designed for effortless performance and control. With 2 DMX modes (15 or 17 channel mode), a 3-pin DMX In/Out, and locking power In/Out connections, it seamlessly integrates into your lighting setup. Notably, its low power consumption of just 199W at maximum power ensures an energy-efficient yet breathtaking display.

Elevate Your Lighting Experience:

Illuminate spaces like never before with the ADJ Vizi Beam RXONE Moving Head. Its compact size, superior optics, and innovative features make it an exceptional choice for events of all scales. Whether you're crafting mesmerizing lightshows for a portable gig or a permanent installation, the Vizi Beam RXONE delivers brilliance that captures the essence of your creative vision.

Unleash Brilliance with ADJ Vizi Beam RXONE:

Experience the pinnacle of lighting technology with the ADJ Vizi Beam RXONE Moving Head. Its cutting-edge features, long-life lamp, and remarkable beam projection redefine what's possible in lighting design. Elevate your events with brilliance – make the ADJ Vizi Beam RXONE the cornerstone of your lighting setup.

Specifications

LIGHT SOURCE:

• Lamp: Osram® Sirius HRI 100W 1R discharge, 9,000˚K – 6,000 hr. long life

• LUX: 76300 @ 10M, 33900 @ 15M

FEATURES:

• 3-degree beam angle

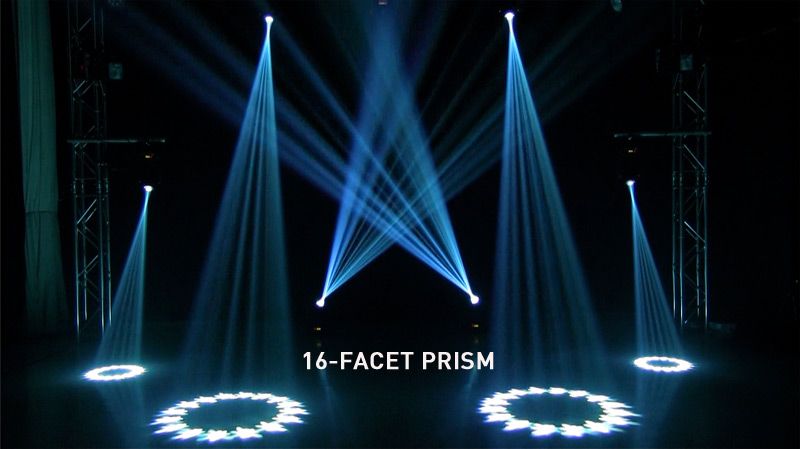

• 16-facet Prism with macros

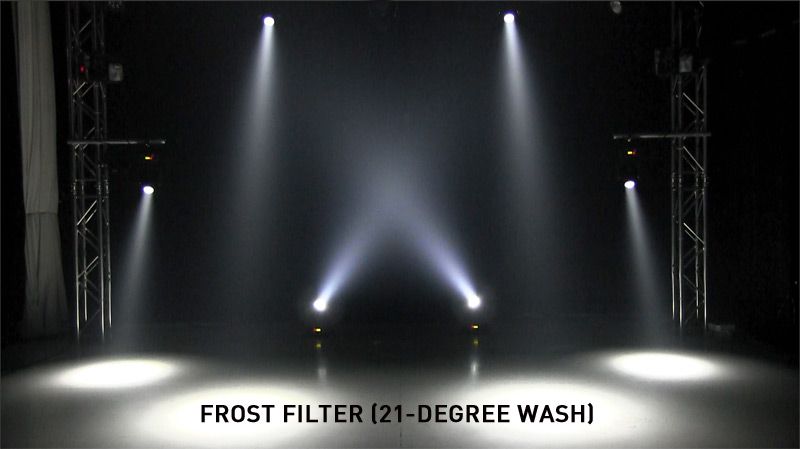

• Frost Filter (21-degree beam angle)

• Independent gobo and color wheels

• Stepper motors with micro stepping

CONTROL:

• 2 DMX Channel Modes: 15 or 17 DMX channels

• LED DMX 4-Button menu system

• Shutter: Pulse effect; random strobe slow to fast

• Strobe effect

• UC IR Compatible (Not Included) & Airstream IR APP Compatible

• Electronic Dimming: 0% - 100%

• Strobe Rate: 0.3-12HZ

• With Wired Digital Communication Network

COLORS:

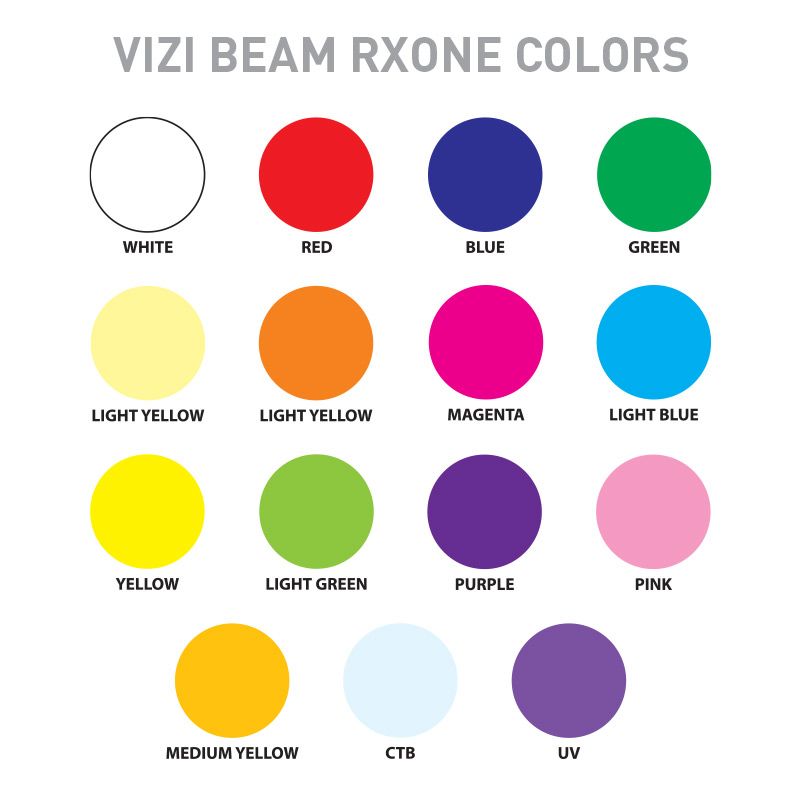

• 14 colors + white and Split Colors

GOBOS:

• 15 static, fixed GOBOs + spot

• GOBO Shake effect

PAN/TILT:

• Pan: 540-degree

• Tilt: 270-degree

• 16-Bit Pan/Tilt Positioning

• Auto X-Y repositioning

• Pan/Tilt Invert

• Built-In Pan/Tilt Macros

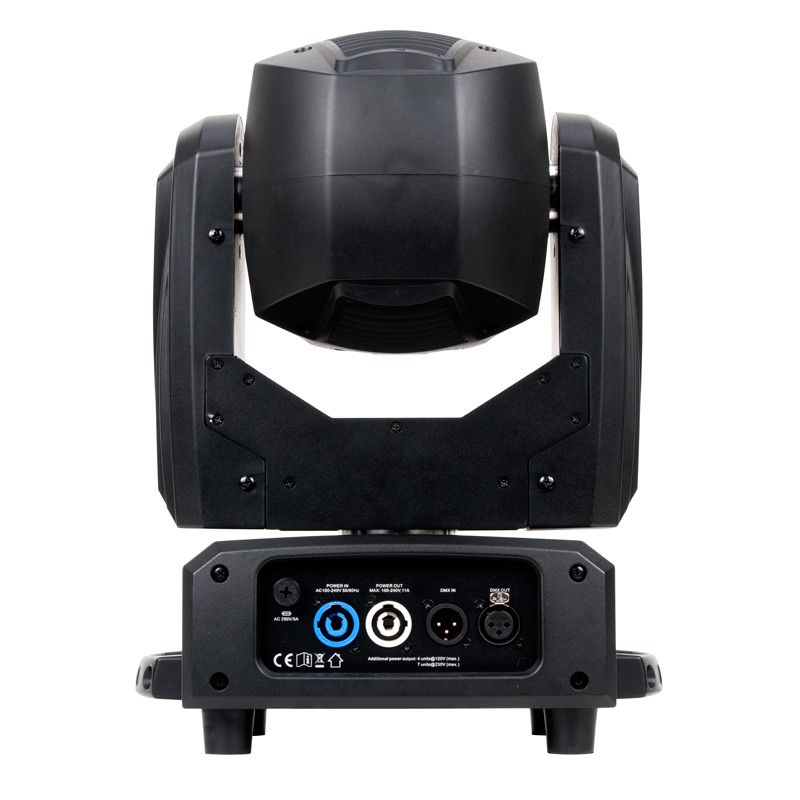

CONNECTIONS:

• Power: Locking connections In & Out to daisy chain power

• DMX Connections: 3-pin DMX In/Out

ELECTRICAL:

• Power Consumption: 199W

• Multi-voltage Operation: 100-240V, 50Hz/60Hz

• Daisy Chain up to 8 fixtures max (@ 120V); 16 fixtures max (@ 230V)

DIMENSIONS & WEIGHT:

• Dimensions (LxWxH): 279 x 225 x 387mm / 11” x 8.75” x 15.25”

• Weight: 9.2kg. / 20 lbs.

OPTIONAL ROAD CASES:

• DRC MH: 2 Vizi Beam RXONE fit in the DRC MH Road Case

• QRC MH: 4 Vizi HBeam RXONE fit in the QRC MH Road Case

APPROVALS:

• cETLus Approved (Control #4000358)

• CE Certified
