American DJ

UV Effects Bar 20IR

UV Effects Bar 20IR

Regular price $325.00 USD
Regular price Sale price $325.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Need support with this product? We're here for you - Give us a Call  (888) 794-7366 or email us.

Introducing the UV LED BAR20 IR: Elevate Your Ultraviolet Experience

Discover the UV LED BAR20 IR, a high-output ultraviolet LED blacklight designed to redefine specialty lighting. With the UC IR wireless remote, effortlessly control On/Off and strobe speed, making it an ideal solution for stages, nightclubs, Bowling Centers, Roller Rinks, and Fun Centers craving vibrant ultraviolet light.

Key Features:

  • Wireless Control Excellence: The UC IR wireless remote enables easy On/Off and strobe speed control, providing a worry-free solution for illuminating stages, nightclubs, and entertainment centers.
  • High-Output Brilliance: Powered by 20x 1-Watt UV LEDs, the UV LED BAR20 IR generates high-output ultraviolet blacklight, with a mere 30W power draw.
  • Precise Beam Angle: The 10-degrees x 40-degrees beam angle ensures precise and impactful coverage, enhancing the ambiance of your space.
  • Long-lasting Performance: With an LED life of approximately 50,000 hours, the UV LED BAR20 IR offers a near maintenance-free solution for consistent ultraviolet illumination.
  • Effortless Control: Access control through the built-in 3-button LCD menu, DMX control, the UC IR wireless remote, or the Airstream IR APP.

Experience ultraviolet brilliance with the UV LED BAR20 IR – where innovation illuminates the world of event lighting.


• Bright, high output Ultraviolet Bar with 20x 1-Watt UV LEDs

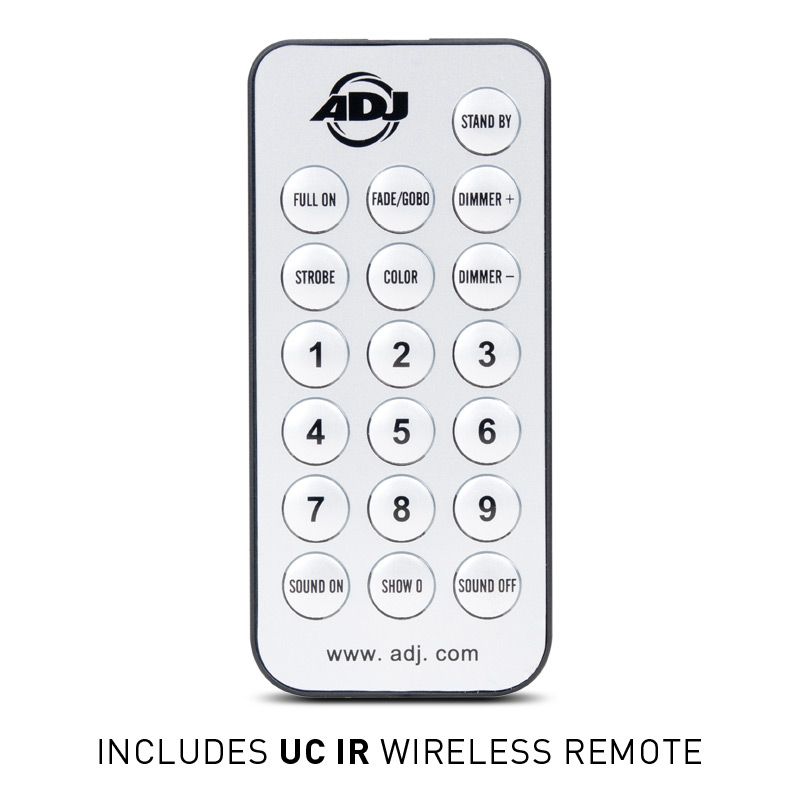

• Includes UC IR wireless remote control (control On/Off and strobe speed)

• Great for performance stages, theatrical productions and special effects installations - requires almost no maintenance - long life LED, low heat output, low power consumption & no moving parts

• Long Life LEDs (50,000 hrs.)

• Low power consumption, low heat

• 4 Operational Modes: Sound Active, DMX-512, Primary/Secondary or Manual

• 3 DMX Channel Modes: 1/2/3

• UV strobe effect

• Electronic Dimming: 0 - 100%

• Flicker Free

• Refresh Rate: 1KHz

• Beam angle: 10 degrees vertical x 40 degrees horizontal linear beam angle - great for wall washing
• Linkable via 3-pin XLR cable
• 3-button LED DMX display on rear panel
• Locking power connections In/Out to daisy chain power (10 fixtures @ 120V; 20 fixtures at 230V)
• Scissor yoke allows fixture to be hung or set on the ground
• Airstream IR APP compatible with iOS device
• Power Draw: 30W
• On/Off switch on rear panel
• Wavelength: 390-410 nanometers
• Multi-voltage Operation: AC 100-240V, 47/63Hz
• Dimensions (LxWxH): 13.25” x 2.5” x 7”/ 334x61x175mm
• Weight: 5 lbs. /2.45 kgs.
