American DJ

Jolt Panel FX

Jolt Panel FX

Regular price $725.00 USD
Regular price Sale price $725.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Need support with this product? We're here for you - Give us a Call  (888) 794-7366 or email us.

Introducing the Jolt Panel FX: Unleash Versatile Brilliance

Experience unmatched versatility with the Jolt Panel FX – the ultimate fixture for concert tours, event production, and nightclub installations. This innovative powerhouse redefines specialty lighting, offering a stunning combination of 48 x 5-Watt cool white SMD LEDs and 800 x 0.3W RGB SMD LEDs.

Key Features:

  • Dazzling Creativity: Illuminate stages and venues with vibrant color washes and brilliant white strobe effects, all from a single compact fixture.
  • Multi-Use Magic: The ADJ Jolt Panel FX is the epitome of multi-purpose lighting. With 800 RGB SMD LEDs for color strobing and 48 white SMD LEDs for the classic strobe look, it's a true game-changer.
  • Zone Chasing Brilliance: Harness eye candy effects by synchronizing white LEDs with zone chasing control.
  • Designed for Impact: Specifically crafted for large stages, nightclubs, live events, and tours, the Jolt Panel FX's massive light output delivers awe-inspiring visuals.

Experience Elevated Control:

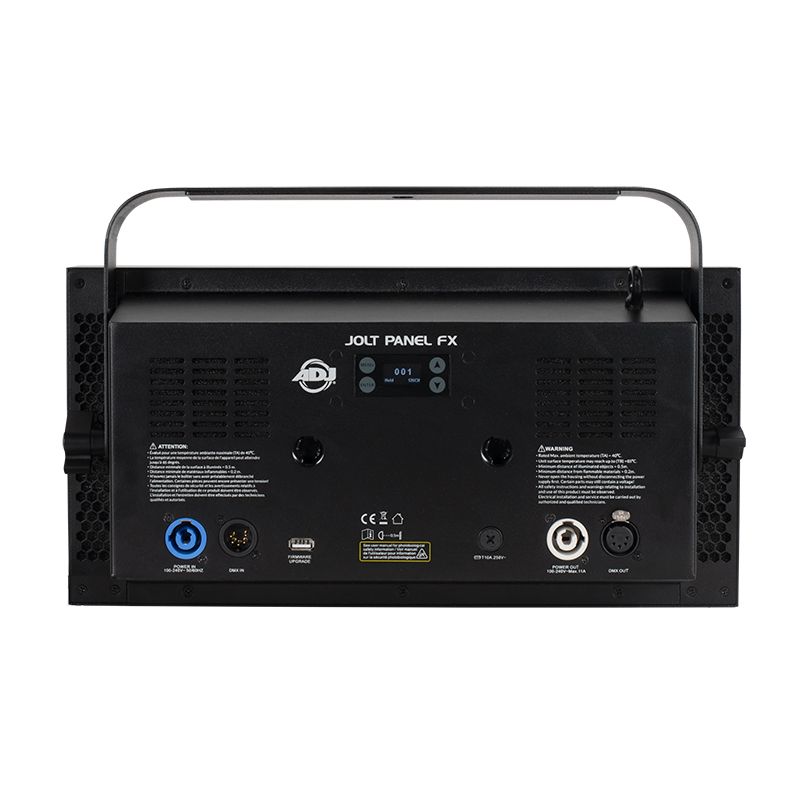

  • Convenient Connectivity: Utilize 5-pin DMX in/out connections and locking power in/out for seamless daisy-chaining.
  • Firmware Updates Made Easy: The USB input streamlines firmware updates for uninterrupted performance.
  • Mounting Made Simple: With a scissor yoke and omega bracket, attaching the fixture to clamps and trusses is effortless.
  • Intuitive Navigation: Navigate built-in features via the LCD display and 4-button menu system. Adjust dimming modes, speed, programs, color macros, and more.

Unleash brilliance with the Jolt Panel FX, where innovation meets illumination in the world of specialty lighting.



Specifications

Light Source:

• 800 x 0.3W RGB SMD LEDs + 48 x 5W Cool White SMD LEDs
• RGB LEDs: 121 Degree Beam Angle
• Cool White LEDs: 89 Degree Beam Angle
• Color Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm. / Cool White: 6500-7000K
• 50,000 Hour Average LED Life

Features:
• 40 x RGB LED zones
• 6 x Cool White LED zones
• 25 built-in RGB LED Program Macros
• 9 built-in Cool White LED Program Macros

Control:
• Control Protocol: DMX
• 10 DMX Modes: 6, 9, 13, 18, 36, 41, 51, 81, 126 and 141 channels
• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• 0-100% Smooth Dimming
• Strobe, shutter & pulse control
• Max Strobe Rate 25Hz. Min Strobe Rate: 0.35Hz.
• With Wired Digital Communication Network
• Display: LCD display with 4-button touch menu

Connections:
• Data: 5-pin DMX In/Out
• 180 degree mounting bracket system
• Ready for Omega Bracket (Sold Separately)
• Power locking power in/out

Electrical:
• 100-240V 50Hz/60Hz (Auto Sensing)
• Max Power Consumption: 330W (2.7A@120V~60Hz, 1.4A@230V~50Hz)

Dimensions / Weight:
• Length: 6.3” (159.5mm)
• Width: 15.95” (405mm)
• Height: 9.85” (250.5mm)
• Weight: 14.1 lbs. (6.4kg)

What’s Included:
• 1x Power locking power cable
• 1x Omega Bracket
• 1x Single Yoke

Approvals:
• cETLus approved (Control # 4000358)
