Hydro Beam X2

ADJ Hydro Beam X2: Unleash Brilliance, Indoors and Outdoors

Experience the pinnacle of lighting innovation with the ADJ Hydro Beam X2. As a professional moving head fixture, it redefines expectations with its mighty 370W LL Osram Sirius HRI discharge lamp, crafting a strikingly sharp 3-degree beam. This IP65 rated marvel is designed to captivate and transform any environment, safeguarded by its outdoor rating against dust, sand, moisture, and liquid intrusion.

Outstanding Performance, Rain or Shine:

Elevate your lighting game with the Hydro Beam X2, purpose-built for both indoor and outdoor settings. Its rugged construction and IP65 rating ensure it can thrive in challenging conditions, from the arid deserts of California to the damp fields of England. Illuminate festivals, outdoor events, open-air clubs, and entertainment spaces with confidence, knowing the sealed casing design extends its operational life and reduces maintenance requirements.

Features that Dazzle:

The Hydro Beam X2 is equipped with a dazzling array of features that set it apart. The linear motorized focus ensures precision, allowing you to sculpt your light with accuracy. Embrace the power of not one, but two prisms—a dynamic 8-facet circular prism with overlay and an innovative 8-facet linear prism with overlay. The fixture boasts an arsenal of rotating, replaceable glass and metal GOBOs, amplified by three GOBO reducers for added versatility. The independent frost filter introduces a captivating wash effect, further expanding your creative horizons.

Crafted for Connectivity and Protection:

With 5-pin DMX In/Out and locking power In/Out connectors, the Hydro Beam X2 ensures seamless connectivity and power daisy-chaining. Every connection is enveloped in IP65 rated rubber protective covers, safeguarding your investment against the elements.

Elevate Your Lighting Arsenal:

Step into the future of lighting technology with the ADJ Hydro Beam X2. Elevate your lightshows, create stunning visual displays, and transform every event into a captivating spectacle. With the Hydro Beam X2, brilliance knows no boundaries.

Secure Your Brilliance:

Transport and protect your Hydro Beam X2 with ease using the ADJ DRC MHX road case. Effortlessly carry innovation wherever your creativity takes you.

Specifications

Light Source:

• Lamp: Osram Sirius HRI 370W LL Long Life Discharge (Average Rated Life 1500 hours)

• Color Temperature : 8000K

• CRI: 70

• Beam Angle: 3-degrees

Features:

• IP65 rated – protects from dust, sand, moisture, liquid

• Linear motorized focus

• Independent frost filter (wash effect)

• 0-100% smooth dimming

• Various strobe speeds

• Includes omega brackets

• Wifly EXR wireless DMX

• 8-facet circular prism

• 8-facet linear prism

• Antenna Range: 98.42ft (30m)

Color Wheel:

• 11 colors + 3200K & 5600K + one Quad Color + open

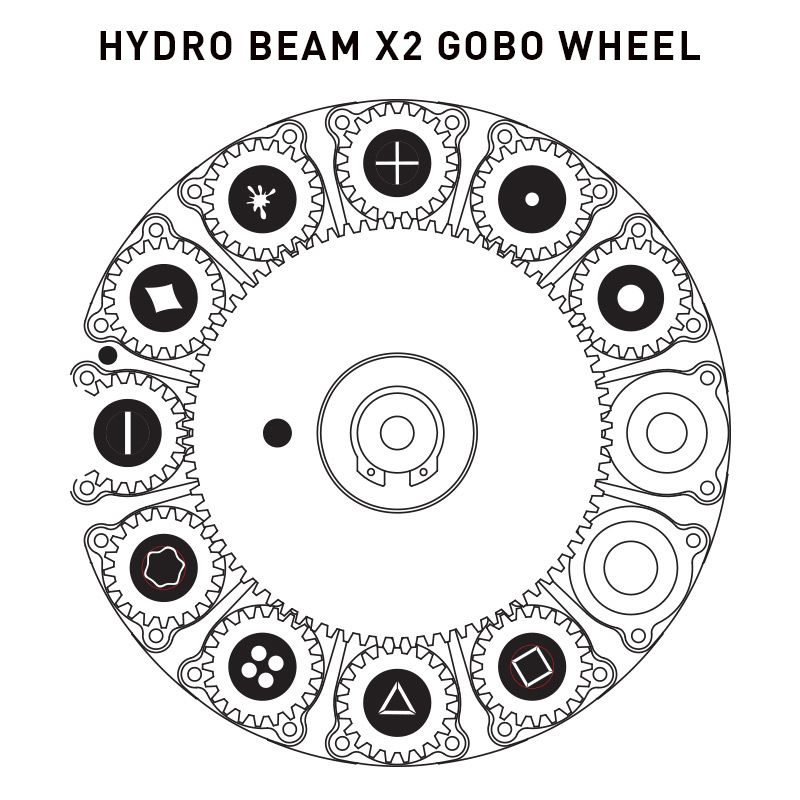

GOBO Wheel:

• 1 GOBO Wheel with 5 glass GOBOs, 3 metal GOBOs and 3 GOBO reducers + open

• All GOBOs rotate and are removable

• GOBOs outside diameter: 9.8mm

• GOBOs image diameter: 6.5mm

• GOBOs Thickness: 1.1m Boro

Construction:

• Display: OLED display

• Data In/Out: 5-pin DMX IP65 (with rubber protective covers over connections)

• Power In/Out: locking IP65 (with rubber protective covers over connections)

• Protection Rating: IP65

• All metal case design

Control:

• 2 DMX Channel Modes: 15/17 Channels

• Control Mode: DMX512, RDM (Remote Device Management)

• With Wired Digital Communication Network

Pan/Tilt:

• Pan/Tilt: 540/270

• Pan/Tilt Resolution; 16-bit

Electrical:

• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)

• Power consumption: 540W

Dimensions & Weight:

• Dimension: 15.8” (L) x 16.5” (W) x 24.8” (H) / 401 x 419 x 629 mm

• Weight: 64 lbs. / 29kg.

Operating Temperature:

Minimum operating temperature: -4°F (-20C)

Maximum operating temperature: 104°F (40C)

Optional Road Cases:

• DRC MHX: Hydro Beam X2 fit in the DRC MHX Road Case

CERTIFICATIONS:

• cETLus Approved (Control #4000358)
