Focus Spot 4Z Pearl

ADJ Focus Spot 4Z Pearl: Unveiling Brilliance in a Compact Moving Head Spot Fixture

Experience unparalleled lighting brilliance with the ADJ Focus Spot 4Z Pearl. This 200W LED moving head spot fixture is a true masterpiece of versatility and innovation, featuring motorized focus and motorized zoom capabilities (11 ~ 22-degrees) that empower you to create captivating lighting effects for various applications.

Unleash Creativity with Precision:

Harness the power of the Focus Spot 4Z Pearl's motorized focus and zoom features. Precisely control the beam angle and size to elevate your creative vision and craft mesmerizing lighting displays.

A Symphony of Light and Effects:

Embrace a world of possibilities with the Focus Spot 4Z Pearl's extensive feature set. Equipped with 6 GOBOs plus an open position, 8 vibrant colors plus white, and 2 prism wheels – one 5-facet linear and one 6-facet circular – this fixture offers endless opportunities for captivating projections.

Elegant Pearl Exterior:

Experience the sophistication of the Focus Spot 4Z Pearl's white exterior housing. This elegant design adds a touch of class to any lighting setup, seamlessly blending with any environment.

Unmatched Performance, Anywhere:

Engineered for excellence, the Focus Spot 4Z Pearl shines in temporary live events and fixed installations. Ideal for nightclubs, stages, and churches, its versatile design caters to various lighting needs with ease.

Advanced Control at Your Fingertips:

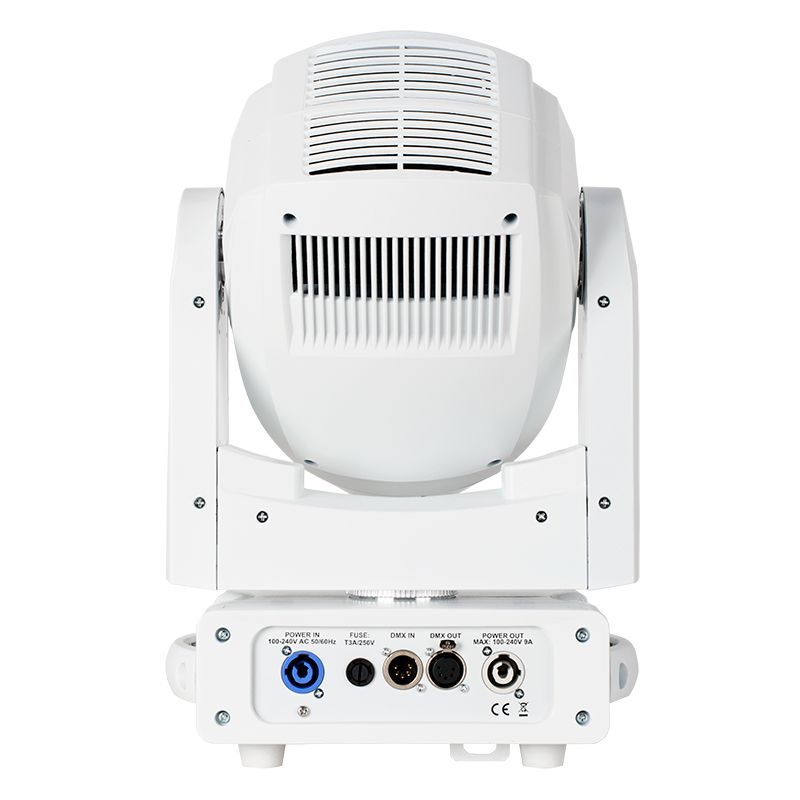

Seamless connectivity is at the heart of the Focus Spot 4Z Pearl. With locking power In/Out connections for effortless daisy-chaining and 5-pin DMX In/Out ports for smooth signal transmission, you're in full control. Explore advanced control options, including 16-bit fine pan and tilt adjustments, multiple DMX control modes, and six distinct dimming options.

Compact Footprint, Powerful Output:

Don't let its compact size fool you. Weighing just 23 pounds and standing at 18 inches high, the Focus Spot 4Z Pearl is a lightweight powerhouse. Its robust light output defies its size, ensuring your lighting displays shine bright and captivating.

A Future-Ready Fixture:

Stay ahead with the Focus Spot 4Z Pearl. Its USB firmware update port ensures you're equipped with the latest features. Explore the next level of lighting control, from 16-bit fine pan and tilt adjustments to various DMX control modes and dimming options.

Elevate Your Lighting Experience:

For lighting professionals, production companies, and venues seeking exceptional lighting solutions, the ADJ Focus Spot 4Z Pearl is the ultimate choice. Explore its brilliance and elevate your lightshows to new heights.

In Conclusion:

The ADJ Focus Spot 4Z Pearl redefines lighting innovation. Experience powerful capabilities, elegant design, and advanced control in one compact fixture. Illuminate your creative visions and captivate your audience with the brilliance of the Focus Spot 4Z Pearl.

Specifications

Light Source:

• 200W Cool White LED Engine (50,000 hr.)

Features:

• Motorized Focus

• Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom

• 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular

• 0-100% smooth dimming

• Various strobe speeds

• USB firmware update port

• 2 cooling fans

• White exterior housing

 Color Wheel:

• 8 dichroic colors + white

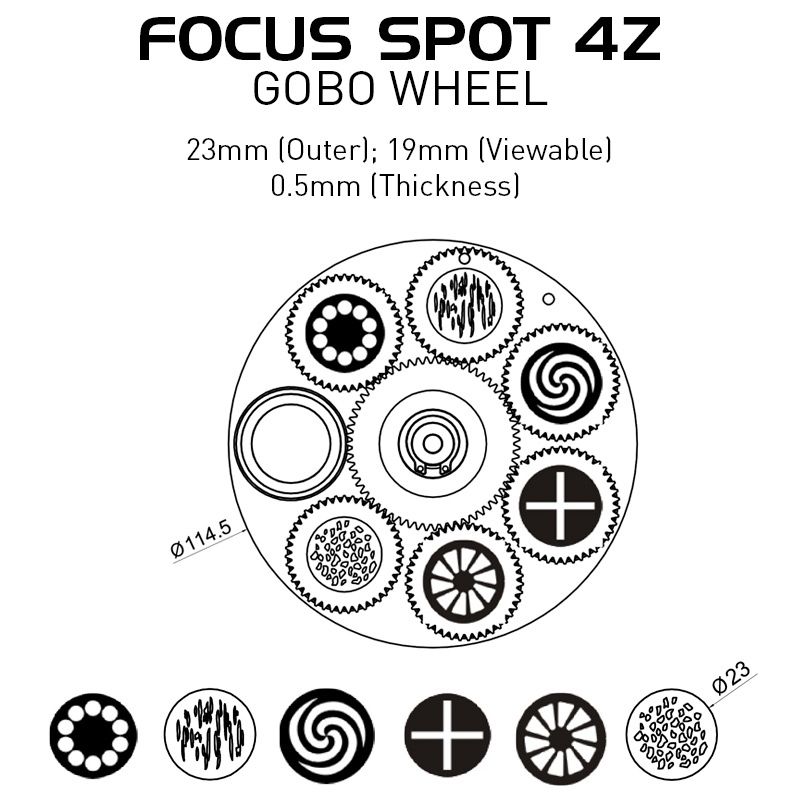

GOBO Wheel:

• 6 aluminum GOBOs + open

• All GOBOs removable & rotatable

• GOBO Shake Effect

• GOBO size: 22.5mm (outer); 19mm (viewable); 0.5-2mm (thickness)

 Prism Wheel:

• Prism Wheel 1: Rotatable 5-facet Linear

• Prism Wheel 2: Rotatable 6-facet Circular

• Prism Indexing

Control:

• 3 DMX Channel Modes: 16/18/22 Channels

• Color LCD display with 6-button function menu

• Data In/Out: 5-pin DMX

• Power In/Out: Locking power In/Out connections (Daisy chain 4 units @ 120V; 10 units @ 240V)

• Control Mode: DMX512 or internal programs

• 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2

• 0-100% smooth dimming

• Various strobe speeds

• USB firmware update port

• With Wired Digital Communication Network

• RDM (Remote Device Management)

Pan/Tilt:

• Pan: 540 & 630 degrees

• Tilt: 270 degrees

Dimensions & Weight:

• Dimension: 7.15” (L) x 10.97” (W) x 18” (H) / 181.5 x 278.6 x 457.4mm

• Weight: 23 lbs. / 10 kg.

What’s Included:

• Omega Bracket

• 6 ft/3M locking power to Edison cable

• Safety Cable

Optional Road Cases:

• DRC MH: 2 Focus Spot 4Z Pearl fit in the DRC MH Road Case

• QRC MH: 4 Focus Spot 4Z Pearl fit in the QRC MH Road Case

Rating/Approvals:

• cETLus approved (Control #4010765)
