American DJ

Focus Spot 4Z

Focus Spot 4Z

Regular price $1,350.00 USD
Regular price Sale price $1,350.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Need support with this product? We're here for you - Give us a Call  (888) 794-7366 or email us.

ADJ Lighting Focus Spot 4Z: Elevate Your Lightshows with Unmatched Versatility

Experience the epitome of lighting excellence with the ADJ Lighting Focus Spot 4Z. This compact moving head redefines versatility, powered by a brilliant 200W cool white LED engine. It's purpose-built to illuminate temporary live events and permanent installations in nightclubs, stages, and churches, offering an unmatched visual experience.

Unleash Your Creative Vision:

Discover the full potential of your creativity with the Focus Spot 4Z. Its motorized focus and zoom capabilities, spanning from 11 to 22 degrees, empower you to create captivating effects adaptable to various applications.

A Symphony of Features:

Enter the realm of professional-grade lighting with the Focus Spot 4Z. Embrace a dynamic interplay of features, from a GOBO wheel boasting 6 rotating and replaceable patterns to 8 vibrant colors plus white. Elevate your shows with the allure of two prism wheels – a 5-facet linear prism and a 6-facet circular prism – casting spellbinding projections. Dive deep into advanced control options, including 16-bit fine pan and tilt adjustments, multiple DMX control modes, and six distinct dimming options.

Lightweight Brilliance:

Despite its robust capabilities, the Focus Spot 4Z remains agile. Weighing a mere 23 pounds and standing at just 18 inches high, it seamlessly marries power with portability. Connectivity is a breeze through locking power In/Out connections for hassle-free daisy-chaining and 5-pin DMX In/Out ports ensuring seamless signal transmission.

Plug and Play Excellence:

Designed for effortless operation, the Focus Spot 4Z arrives pre-programmed with an 'Auto' lightshow, offering a plug-and-play solution. For a synchronized lightshow that mesmerizes, easily link multiple fixtures in a Master/Slave configuration.

The Ultimate Choice:

Production companies, venues, and professionals of all scales will find their ideal lighting companion in the ADJ Lighting Focus Spot 4Z. Safely transport and protect two units with the ADJ DRC HM road case. Expand your creative horizons with the Focus Spot 4Z Pearl, available in white housing.

In Conclusion:

The ADJ Lighting Focus Spot 4Z is more than just a fixture; it's a manifestation of innovation, versatility, and brilliance. Embark on a journey of captivating lightshows, mesmerizing your audience, and transforming your creative visions into reality. Elevate your productions with the Focus Spot 4Z – where innovation meets illumination.



Light Source:

  • 200W Cool White LED Engine (50,000 hr.)


  • Motorized Focus
  • Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
  • 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
  • 0-100% smooth dimming
  • Various strobe speeds
  • USB firmware update port
  • 2 cooling fans

Color Wheel:

  • 8 dichroic colors + white

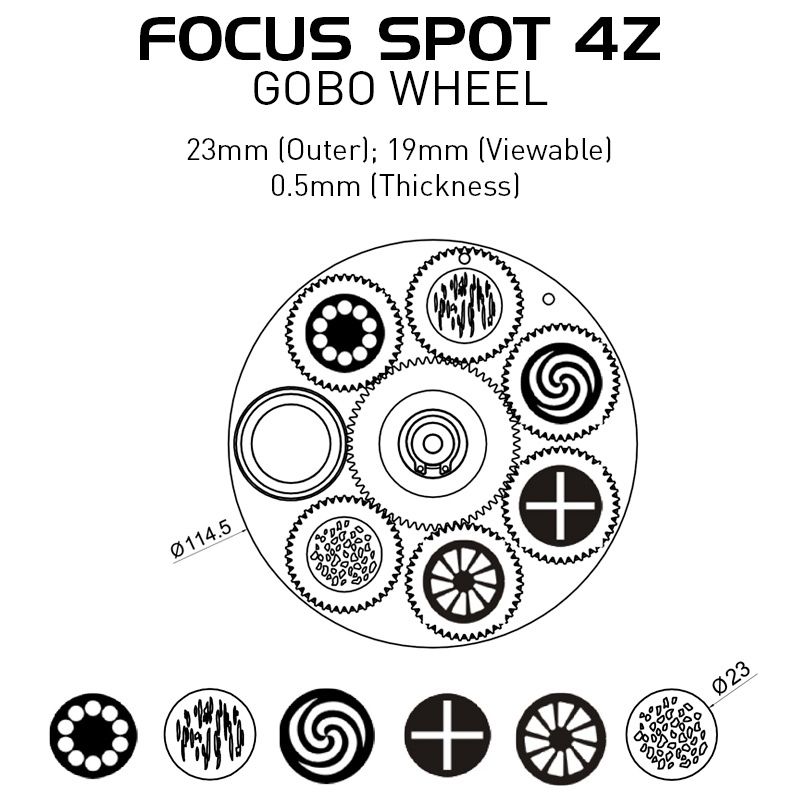

GOBO Wheel:

  • 6 aluminum GOBOs + open
  • All GOBOs removable & rotatable
  • GOBO Shake Effect
  • GOBO size: 22.5mm (outer); 19mm (viewable); 0.5-2mm (thickness)

Prism Wheel:

  • Prism Wheel 1: Rotatable 5-facet Linear
  • Prism Wheel 2: Rotatable 6-facet Circular
  • Prism Indexing


  • 3 DMX Channel Modes: 16/18/22 Channels
  • Color LCD display with 6-button function menu
  • Data In/Out: 5-pin DMX
  • Power In/Out: Locking power In/Out connections (Daisy chain 4 units @ 120V; 10 units @ 240V)
  • Control Mode: DMX512 or internal programs
  • 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
  • 0-100% smooth dimming
  • Various strobe speeds
  • USB firmware update port
  • With Wired Digital Communication Network
  • RDM (Remote Device Management)


  • Pan: 540 & 630 degrees
  • Tilt: 270 degrees

Dimensions & Weight:

  • Dimension: 7.15 (L)” x 10.97” (W) x 18” (H) / 181.5 x 278.6 x 457.4mm
  • Weight: 23 lbs. / 10 kg.

What’s Included:

  • Omega Bracket
  • 6 ft/3M Locking power to Edison cable
  • Safety Cable

Optional Road Cases:

  • DRC MH: 2 Focus Spot 4Z fit in the DRC MH Road Case
  • QRC MH: 4 Focus Spot 4Z fit in the QRC MH Road Case


  • cETLus approved (Control #4010765)
