American DJ

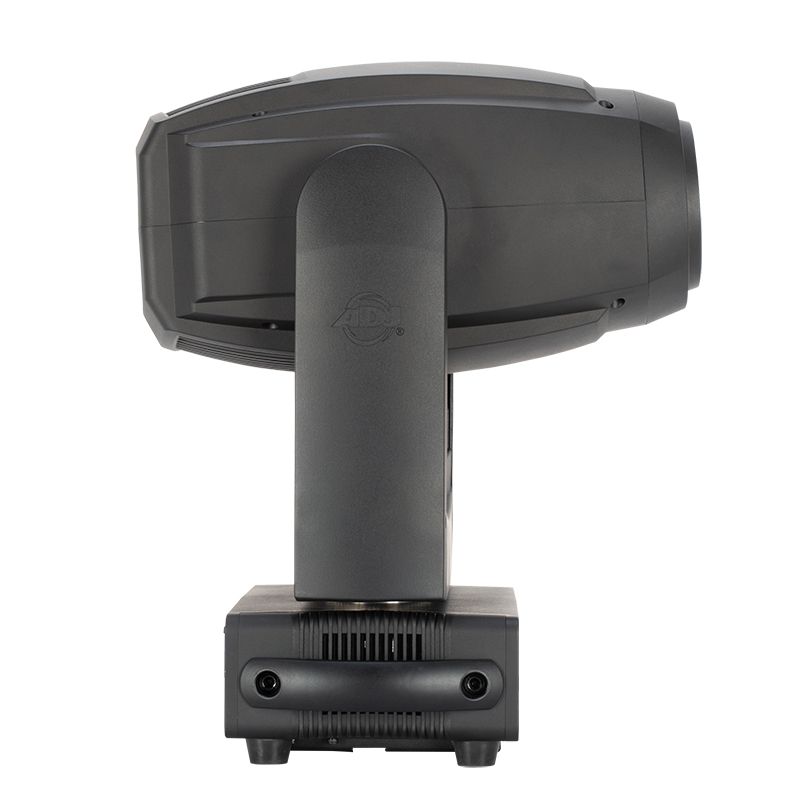

Focus Hybrid
Focus Hybrid
Regular price
$2,150.00 USD
Regular price
Sale price
$2,150.00 USD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Need support with this product? We're here for you - Give us a Call  (888) 794-7366 or email us.
Couldn't load pickup availability
Specifications
SOURCE
200W LED Engine
50,000 Hour Average LED Life
Â
PHOTOMETRIC DATA
4,100 Total Lumens
7,500K, >70CRI
57,433 LUX 5,336 FC @16.4’ (5m) (3.1° Beam)
1,293 LUX 120 FC @16.4’ (5m) (23.8° Beam)
Â
EFFECTS
8-Facet Circular & 6-Facet Linear Rotating PrismsÂ
Prism Layering
Replaceable Frost Filter (Heavy Frost Default)
Motorized Zoom (2° to 24°)
Motorized Focus
Electronic Dimming & Strobe (1-20Hz)
Â
COLOR
Color Wheel with 11 dichroic colors, includes 3200 CTO Filter
Â
GOBOS
(2) Gobo Wheels
#1 - (7) Interchangeable Rotating-Indexing Gobos
#2 - (15) Static-Stamped Gobos
Â
CONTROL / CONNECTIONS
(3) DMX Channel Modes (19 / 23 / 25)
WiFLY EXR Wireless DMX Built-in (2500 ft. 700M line of sight)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
5 pin XLR DMX In/Out
Locking In/Thru power connections
Antenna on rear for WiFLY EXR Wireless DMX connection
With Wired Digital Communication Network
Â
PAN / TILT
Pan: 540-degrees
Tilt: 270-degrees
SIZE / WEIGHT
Length: 13.8" (351mm)
Width: 11.0" (279mm)
Vertical Height: 20.9" (530mm)
Weight: 31 lbs. (14.10kg)
Â
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption: 335W
Max ambient temperature: -13°F to 113°F (-25°C to 45°C)
Max housing temperature: 136°F (58°C)
Daisy chain power up to 2 units @ 120V or 6 units @ 240V
TECHNICAL DATA
DB Rating @ 3ft.: 43.2dB
BTU: 0.32
BTU/H: 1,142.35
Â
APPROVALS / RATINGS
CE | ETL (Pending)
IP20
INCLUDED ACCESSORIESÂ
(1) Power cable
(2) Omega brackets
(1) Medium frost filter
Specifications and documentation subject to change without notice.
