American DJ

Focus Beam LED

Focus Beam LED

Regular price $1,500.00 USD
Regular price Sale price $1,500.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Need support with this product? We're here for you - Give us a Call  (888) 794-7366 or email us.

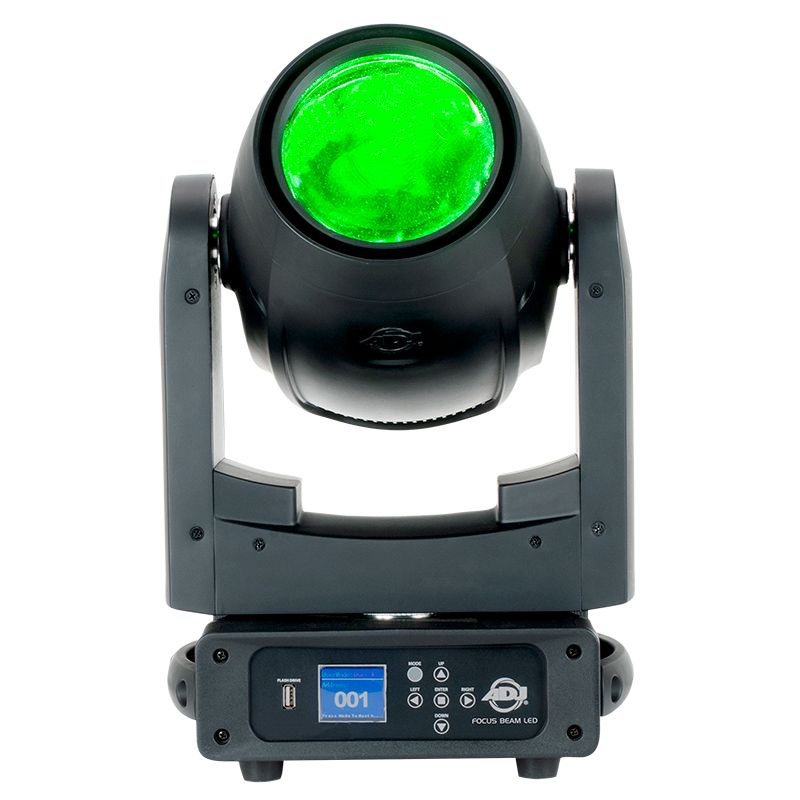

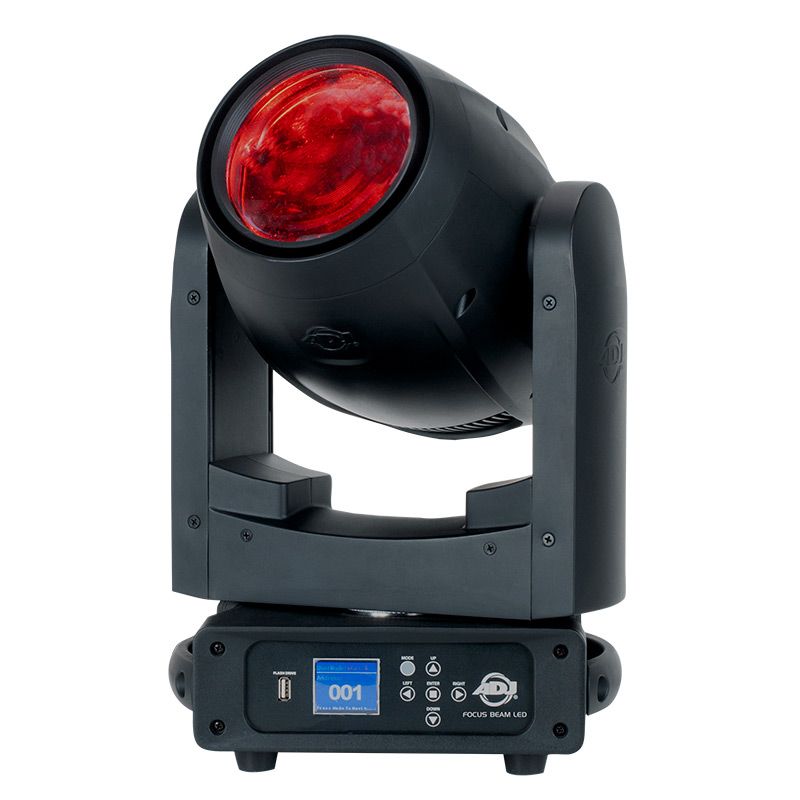

Introducing the Focus Beam LED: Illuminate with Precision and Power

Step into a realm of unmatched radiance with the Focus Beam LED, an extraordinary addition to the renowned Focus Series moving heads. Leveraging an impressive 80W LED engine, this luminary generates a potent 7400K, 2.5-degree beam, crafting a mesmerizing display through cutting-edge optics. Perfectly complementing its counterparts, the Focus Beam LED embodies power, precision, and versatility.

Unleash Brilliance with Advanced Features:

Dive into a world of creative possibilities with the Focus Beam LED. Engineered for excellence, this fixture boasts motorized focus, seamlessly refining your visual effects. Revel in the magic of dual prism effects – an 8-facet Circular prism and a 6-facet Linear prism – adding depth and dynamism to your displays. The built-in frost filter transforms your beam into captivating wash effects, further enriching your lighting repertoire.

Masterful Control at Your Fingertips:

Control becomes an art with the Focus Beam LED's diverse options. Explore DMX & RDM protocols, a range of dimming modes, fine pan and tilt adjustments, and customizable gamma and LED refresh rate settings. An intuitive function display with 5 touch buttons empowers you to effortlessly fine-tune custom configurations, ensuring your lightshow is nothing short of spectacular.

Vibrant Color Palette and Captivating Effects:

Embark on a journey of vivid hues with the Focus Beam LED. Its palette offers 13 dichroic colors, including white, while 15 fixed GOBOs – plus open – create captivating patterns and visuals. Witness the mesmerizing GOBO shake effect, elevating your displays with captivating movement.

Innovative Connectivity and Compact Design:

The Focus Beam LED is not just about brilliance; it's about convenience too. Stay up-to-date with a USB port for firmware updates. Secure locking Seetronic In/Out connections enable easy daisy-chaining of power, and 5-pin DMX In/Out connections flawlessly link data. Despite its remarkable capabilities, this fixture remains compact and lightweight, suitable for both fixed installations and dynamic mobile events.

Unleash the Focus Beam LED's Potential:

Elevate your lighting experience with the Focus Beam LED, a testament to innovation, precision, and versatility. Whether you're crafting immersive installations or captivating event displays, this luminary fits seamlessly into your vision. Discover the brilliance that awaits and explore the limitless possibilities of the Focus Beam LED.

Enhance Your Experience with ADJ DRC MH Road Case:

Transport and safeguard your Focus Beam LED with ease using the ADJ DRC MH road case, ensuring your fixture is protected and ready to shine wherever your creativity takes you.


Light Source:

1x 80W Cool White LED Engine

2.5° Beam Angle

Color Temperature: 7400K

50,000 Hour Average LED Life


Control Protocol: DMX & RDM (Remote Device Management)

DMX Modes: 2 (16 & 18)

Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)

Dim Speed control (0.1~10 Seconds)

Dimming: 0 - 100%

Strobe & pulse control

Motorized Focus

Linear Frost 0-100% (Wash effect)

2 Prisms: 6 & 8 Facet, Indexable and Rotatable

USB firmware update port

Adjustable LED Refresh Rates (900~25k Hz)

Adjustable Gamma Settings (1.0-2.8)

With Wired Digital Communication Network

Display: Touch display with 5-button touch menu

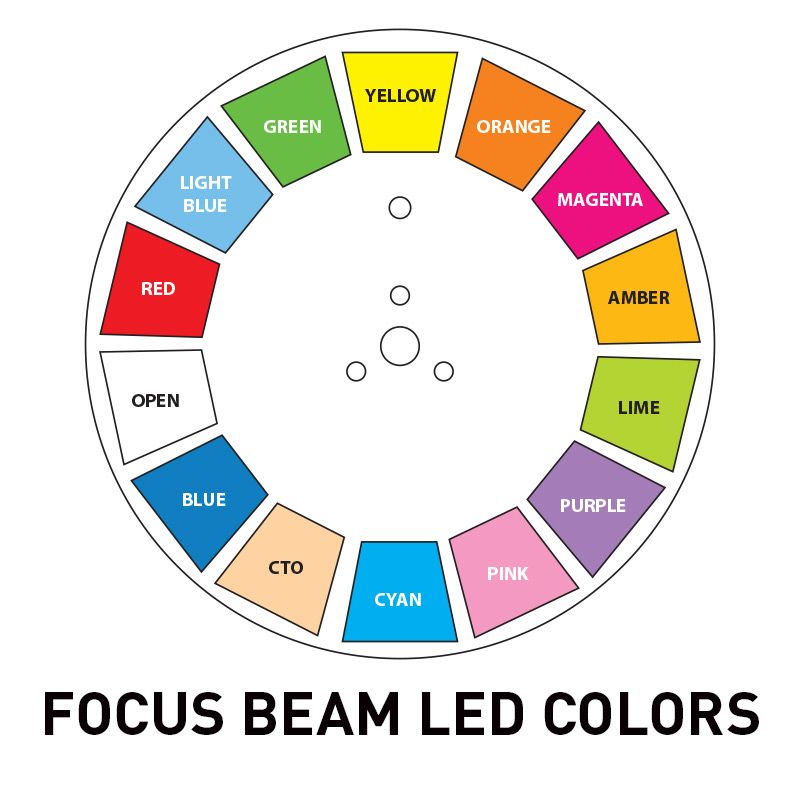

Color Wheel:

13 dichroic colors + white

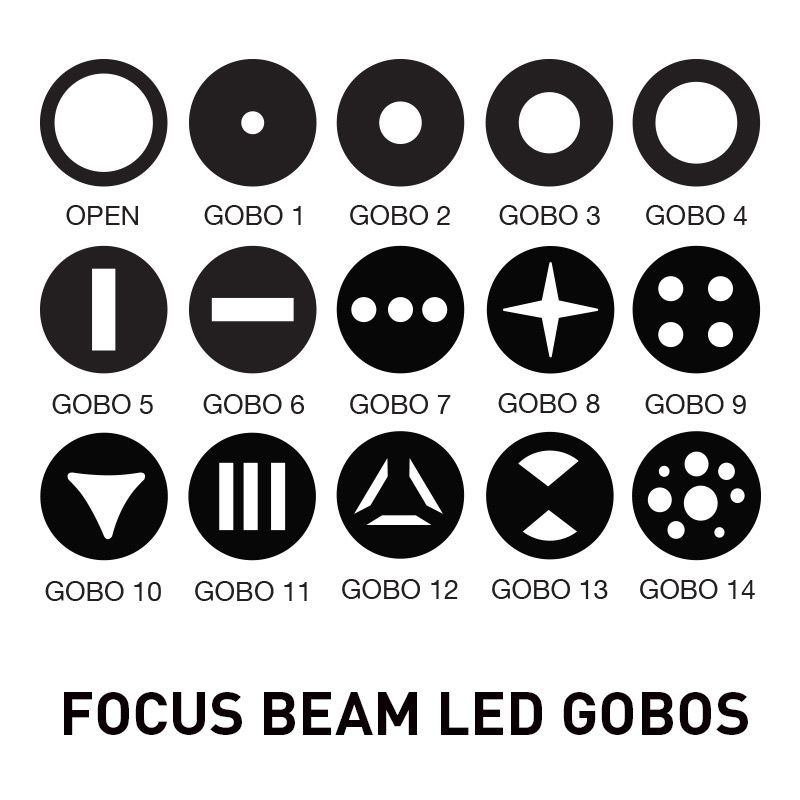

GOBO Wheel:

Metal wheel with 15 fixed GOBOs + Open

GOBO shake effect

Prism Wheel:

Prism Wheel 1: Rotatable 8-facet Circular

Prism Wheel 2: Rotatable 6-facet Linear

Prism Indexing with overlay feature


Control Modes: DMX512, RDM (Remote Device Management)

 & Stand Alone Internal Programs

2 DMX Channel Modes: 16 & 18 channels

16-Bit Pan, Tilt & Dimmer control

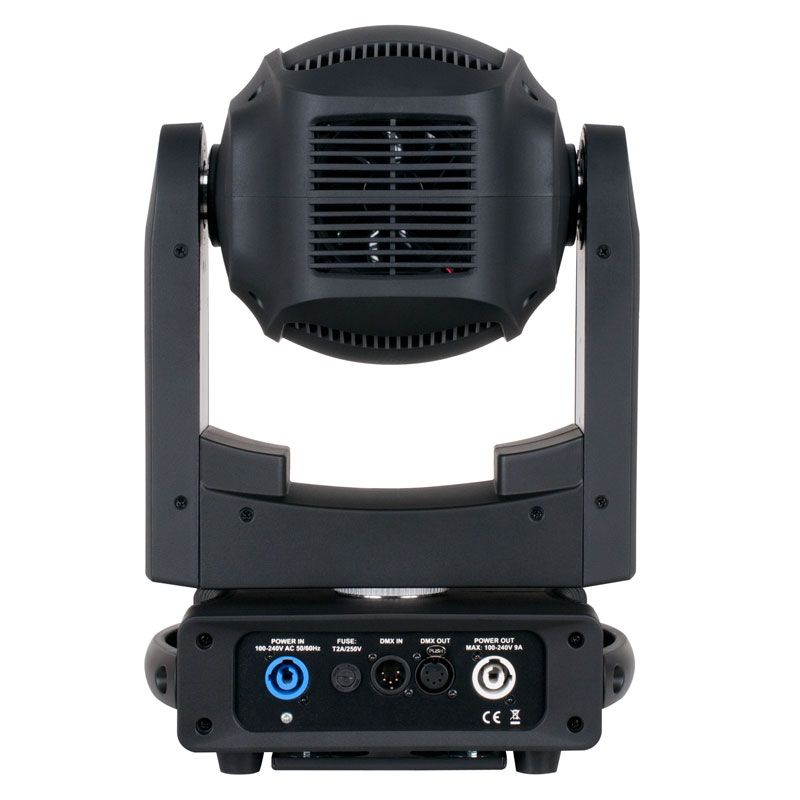

DMX Connections: 5-pin Locking XLR In & Out

Power Connections: Seetronic Locking Power In & Out


Pan & Pan Fine: 630 degrees

Tilt & Tilt Fine: 270 degrees


Multi-voltage operation: AC 100-240V, 50-60Hz (Auto Sensing)

Maximum Power Consumption: 136W @ 120V

Daisy chain: 15 units @ 120V; 30 units @ 230V

Dimensions & Weight:

Dimensions (LxWxH):  10.96" x 7.55" x 17.61" / 278x191x447mm

Weight: 27 lbs. (12.25 kg)

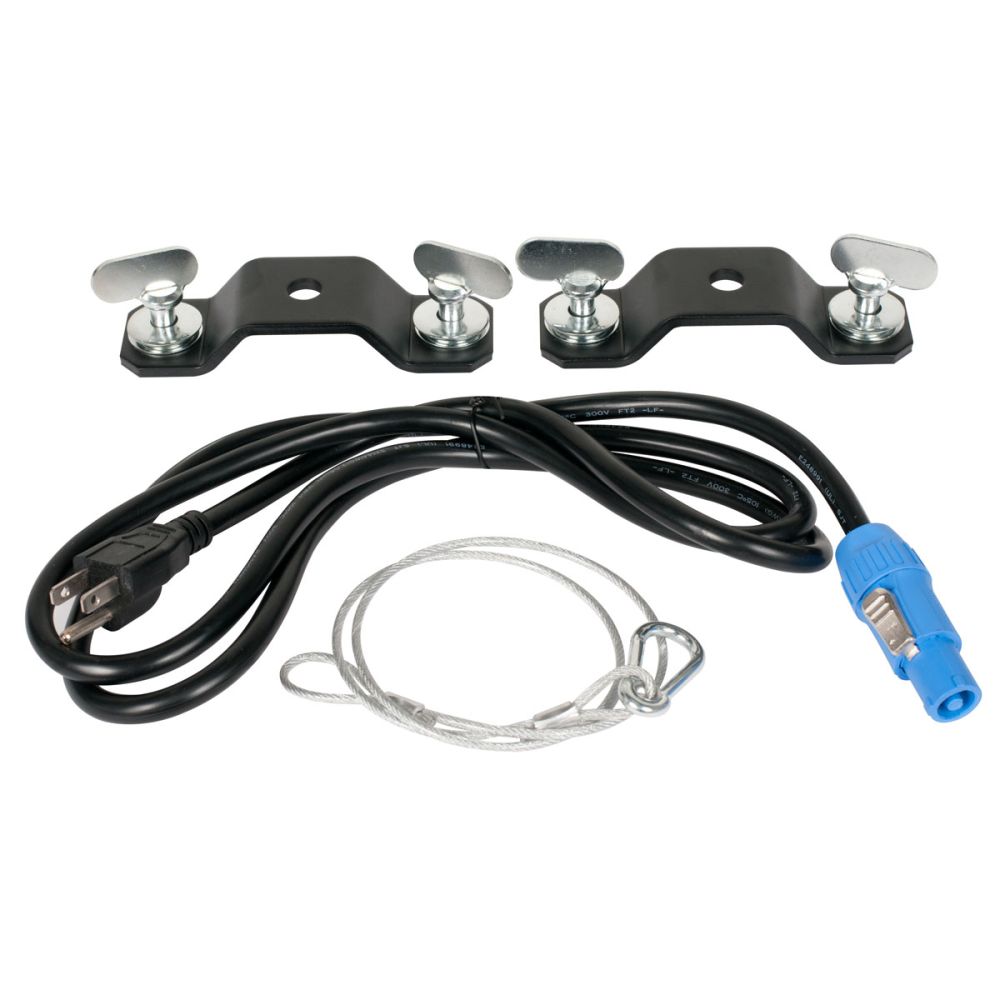

What’s Included:

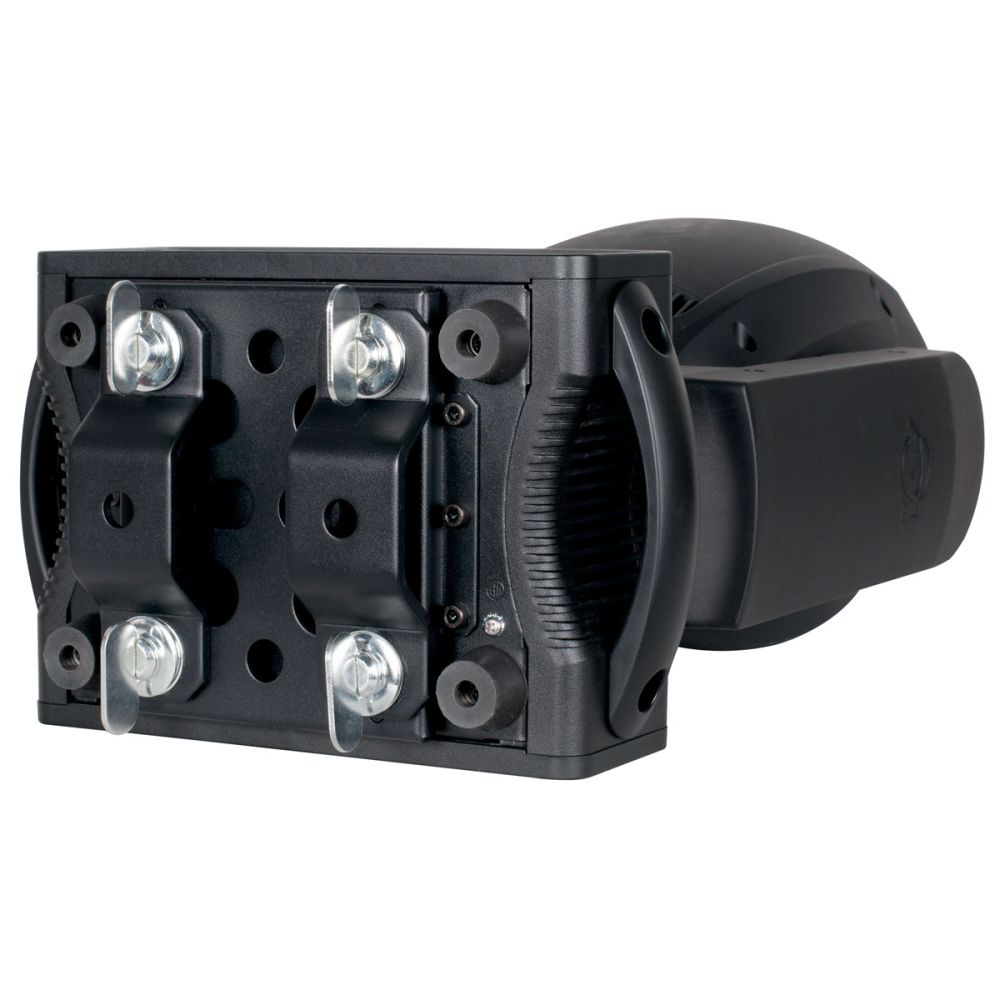

2x Omega Brackets

1x Seetronic Power Locking Power Cable

Optional Road Cases:

DRC MH: 2 Focus Beam LED fit in the DRC MH Road Case

QRC MH: 4 Focus Beam LED Pearl fit in the QRC MH Road Case
