Wisdom Esoterica

Jolt Bar FX 250

Jolt Bar FX 250

Regular price $775.00 USD
Regular price Sale price $775.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Need support with this product? We're here for you - Give us a Call  (888) 794-7366 or email us.

Discover the ADJ Jolt Bar FX: Ultimate Lighting Brilliance

Experience unparalleled lighting versatility with the ADJ Jolt Bar FX – the pinnacle of professional linear LED fixtures. This powerhouse delivers impressive output, offering both dazzling bright white strobe/blinder LEDs and dynamic multi-colored chase effects within a single, flexible unit. Designed for concert productions, festival stages, and large nightclub installations, the Jolt Bar FX redefines the landscape of specialty light

Key Features:

  • Dual-Effect Magic: Illuminate stages with stunning white strobing and captivating multi-colored chase effects, all from one unit.
  • Dynamic Zone Control: 112 x 5-Watt cool white SMD LEDs meet 448 x 0.3W RGB color mixing SMD LEDs, grouped into 16 white and 32 color controllable zones for versatile lighting effects.
  • Wide Beam Angle: A 116-degree beam angle and immense light output make the Jolt Bar FX perfect for concerts, festivals, dance events, and expansive nightclub installations.
  • Flexible Mounting: Supplied with 180-degree hanging brackets that double as floor stands, allowing continuous zone chase effects. Multiple units can be positioned side by side.
  • DMX Control Options: Choose from 11 DMX modes for varied control levels. 25 built-in RGB LED program macros and 9 white LED program macros streamline programming.
  • Intuitive Display: A 4-touch button LCD menu display on the rear facilitates DMX addressing and mode configuration for effortless programming.
  • Compact Yet Robust: Measuring 1m in length, with a compact design, the fixture boasts robust metal construction while remaining lightweight (16.5lbs. / 7.5kg.).

Experience a new era of lighting with ADJ Jolt Bar FX. Elevate stages, ignite dance floors, and transform spaces with a single versatile unit that blends innovation with brilliance.

Specifications

Light Source:

• 448 x 0.3W RGB SMD LEDs + 112 x 5W Cool White SMD LEDs
• 116 Degree Beam Angle
• Color Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm.  / Cool White: 5000-6500K
• 50,000 Hour Average LED Life

Features:
• 32 x RGB LED zones
• 16 x Cool White LED zones
• 25 built-in RGB LED Program Macros
• 9 built-in Cool White LED Program Macros

Control:
• Control Protocol: DMX
• 13 DMX Modes: 6, 9, 13, 16, 18, 32, 32A 38, 43, 64,78, 112 and 126 channels
• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law and S Curve)
• 0-100% Smooth Dimming
• Strobe, shutter & pulse control
• Max Strobe Rate 25Hz. Min Strobe Rate: 0.35Hz.
• With Wired Digital Communication Network
• Display: OLED display with 4-button touch menu

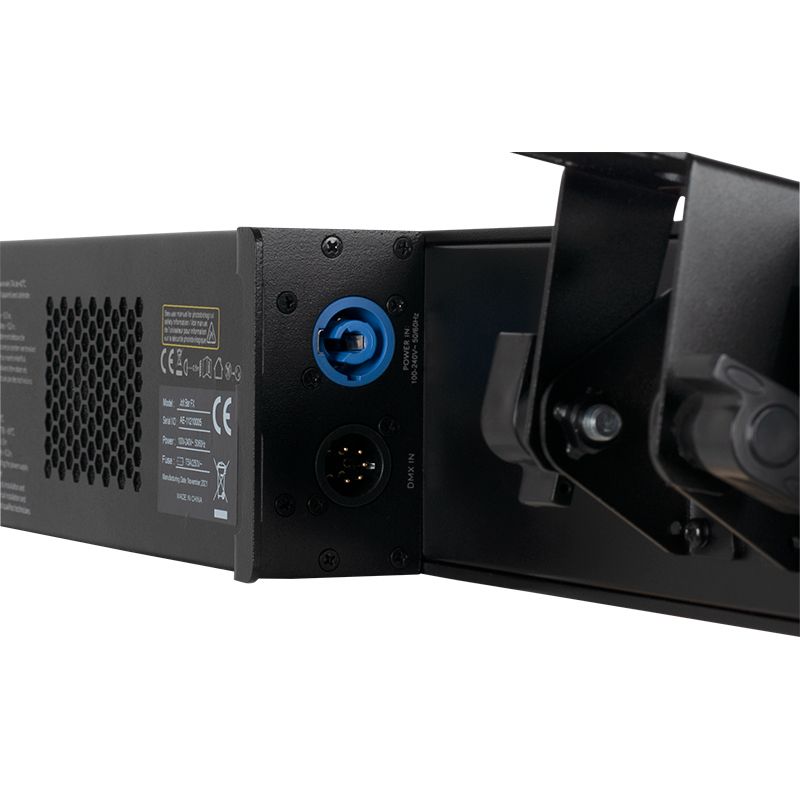

Connections:
• Data: 5-pin DMX In/Out
• 180 degree mounting bracket system
• Power locking power in/out
• Connect fixtures seamlessly using included metal bracket attachment

Electrical:
• 100-240V 50Hz/60Hz (Auto Sensing)
• Max Power Consumption: 430W

Dimensions / Weight:
• Length: 39.4” (1000mm)
• Width: 4.2” (107mm)
• Height: 4.8” (123mm)
• Weight: 16.5 lbs. (7.5kg)

What’s Included:
• 1x power locking to Edison power cable (U.S.)

Approvals:
• cETLus approved (Control # 4000358)
